Mark Fielding Residential Design

For new residential and renovation design

RECENT DESIGNS: FREEMAN HOUSE #2, HEEMSKERCK PLACE TASMAN HEIGHTS, NELSON. TWO STOREY CONTEMPORARY DESIGN WITH A FLAT ROOF STYLE.

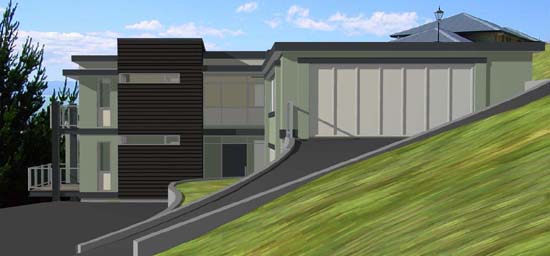

CAD rendered view from South
Cad rendered South Approach view of Freeman House. Painted Fibre cement panel primary cladding, Linea weatherboard secondary cladding with white painted panel work for highlights.

CAD Rendering from South West
CAD rendered view from the South West showing 2 storey Garage solution for requirement to have four car garaging. Garage doors, panel work and window shapes on green walls are an attempt to create some familiar traditional features to hopefully instill a warmer emotional response to an otherwise "cold" contemporary impression.

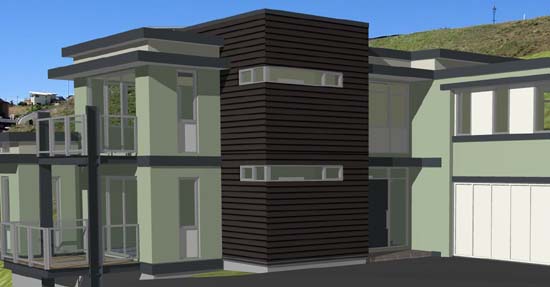

Closeup Rendering of Entry Area
Closeup rendering of Entry and "tower" clad with black painted Linea weatherboard as a complete contrast to the pastel coloured walls. Window shapes in this vertical element are strogly horizontal while window shapes in the main walls (which have strong horizontal elements) are vertical in shape.

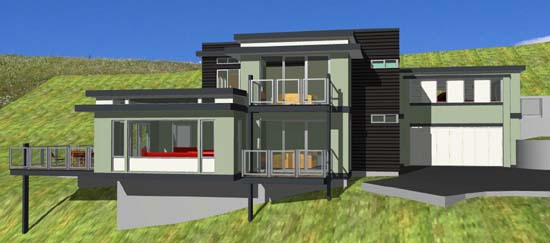

CAD rendering from the west
CAD rendered image from the west view. Main Lounge front left cantilevers out over ground falling away quickly. This view also shows a good proportional balance whereby the bulkier parts of the building are located near the centre of the overall mass, with the single storey areas extending out horizontally from that.

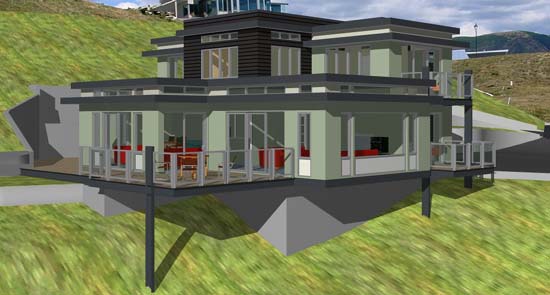

CAD rendering from the North West
CAD rendered image from north west showing main deck off Lounge and Family room.

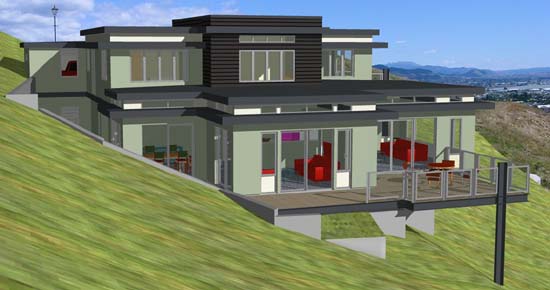

CAD render from North East
CAD rendered North East view of Freeman 2 House. Dining Room lower left, Family room in foreground, Lounge to the lower right. Bedrooms upstairs. All with good north sun and expansive views to the NW and West.

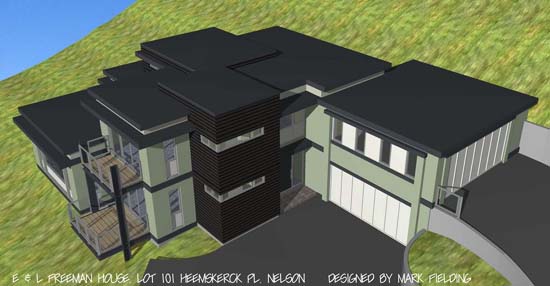

Birdseye view from South West
CAD rendered birdseye view from the south west clearly showing extensive layering of the various flat roof levels.
